جزئیات محصول:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 7.0 inch |
|---|---|---|---|
| Resolution: | 1024×600 | Display Colors: | 16.7M (8-bit) |
| Contrast Ratio: | 800:1 (Typ.) | Outline: | 164.05×100.86 mm |
| برجسته: | industrial lcd screen,industrial lcd panel |
||

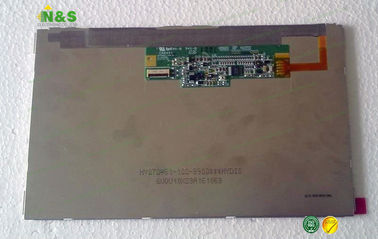

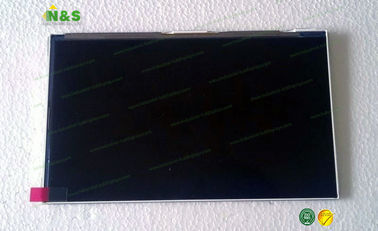

HV070WS1-100 HYDIS TFT LCD Module Normally Black 7.0 inch with 153.6×90 mm Active Area Contrast Ratio 800:1 (Typ.)
Our Advantages
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
| 1.22 240RGB204 | BOE | 1.2" | 240×204 |
| CLAG040LM31 | CPT | 4.0" | 480×800 |
| BT040WVG-N60 | BOE | 4.0" | 480×800 |
| BS050HDG-N40-6C00 | BOE | 5.0" | 720×1280 |
| LH450WX3-SH01 | LG Display | 4.5" | 720×1280 |
| TT070WSB-NW1 | BOE | 7.0" | 1024×600 |
| TT070WSB-NW0 | BOE | 7.0" | 1024×600 |
| TT101WSB-NW0 | BOE | 10.1" | 1024×600 |
| C050SWY8-2 | IVO | 5.0" | 480×854 |
| C047SWY2-0 | IVO | 4.7" | 480×854 |
| LC490EQJ-SGE2 | LG Display | 49" | 3840×2160 |
| F068A01-6T1 | Innolux | 6.8" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
HV070WS1-100 Basic Information
| Panel Model | HV070WS1-100 |
| Panel Brand | HYDIS |
| Descrition | a-Si TFT-LCD ,7.0 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
HV070WS1-100 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 169 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.050×0.150 mm (H×V) |
| Pixel Pitch | 0.150×0.150 mm (H×V) |
| Weight | TBD |
| Active Area | 153.6×90 mm (H×V) |
| Outline Dimension | 164.05×100.86 mm (H×V) |
| Outline Depth | 2.35 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV070WS1-100 Optical Features
| Display Mode | HFFS, Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.291; Wy:0.320 |
| White Variation | 1.17/1.25 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
HV070WS1-100 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 2.01/2.23W (Typ./Max.) |
