جزئیات محصول:
|
| Panel Type: | CSTN-LCD | Panel Size: | 7.2 inch |
|---|---|---|---|
| Resolution: | 640×480 | Display Colors: | Color |
| Frequency: | 75Hz | Input Voltage: | 3.3V (Typ.) |
| برجسته: | industrial touch screen display,industrial lcd panel |
||

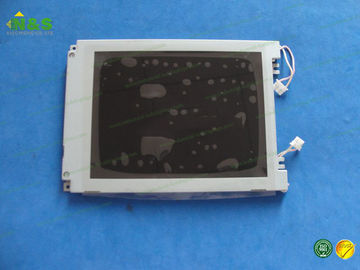

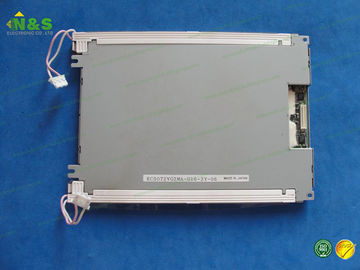

KHS072VG2MA-L89 Active Area 145.9×109.42 mm 7.2 inch TFT LCD MODULE 640×480 Frequency 75Hz
KHS072VG2MA-L89 Basic Information
| Panel Model | KHS072VG2MA-L89 |
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,7.2 inch, 640×480 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
KHS072VG2MA-L89 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 111 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.076×0.228 mm (H×V) |
| Pixel Pitch | 0.228×0.228 mm (H×V) |
| Weight | 370g (Typ.) |
| Surface | Glare (Haze 0%) |
| Active Area | 145.9×109.42 mm (H×V) |
| Bezel Area | 147.9×111.4 mm (H×V) |
| Outline Dimension | 189×134 mm (H×V) |
| Outline Depth | 9.2±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KHS072VG2MA-L89 Optical Features
| Display Mode | STN, Normally Black, Transflective |
| Brightness | 160 cd/m² (Typ.) |
| Contrast Ratio | 5:1 (Typ.) (Reflective) |
| Display Color | Color () |
| Response Time | 250/150 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/30 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.290; Wy:0.310 |
| Reflectance Ratio | 2.5/5% (Min./Typ.) |
| Sunlight Readable | Y |
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
