جزئیات محصول:
|
| Panel Type: | LTPS TFT-LCD | Panel Size: | 10.4 inch |
|---|---|---|---|
| Resolution: | 1024×768 | Active Area: | 210.432×157.824 mm |
| Outline: | 238.6×173.2 mm | Display Colors: | 262K (6-bit) |
| برجسته: | industrial touch screen display,industrial lcd screen |
||

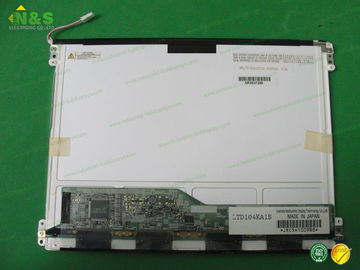

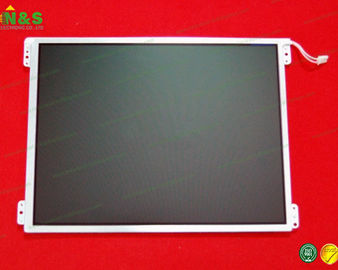

Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
LTD104KA1S Basic Information
| Panel Model | LTD104KA1S |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Digitizer easy insertion design, Mechanical Compatible with LTM10C321K/T Series. |
LTD104KA1S Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Weight | 195g (Typ.) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 215.0×162.5 mm (H×V) |
| Outline Dimension | 238.6×173.2 mm (H×V) |
| Outline Depth | 6.8 (Max.) mm |
| Holes & Brackets | Face mounting holes on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTD104KA1S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 170 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 45/45/20/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
