HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)

HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area	Contrast Ratio 500:1 (Typ.)
HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area	Contrast Ratio 500:1 (Typ.)

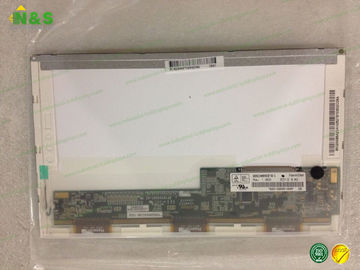

تصویر بزرگ :  HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)

جزئیات محصول:
Place of Origin: KOREA
نام تجاری: HannStar
گواهی: ISO9001
Model Number: HSD089IFW1-B00
پرداخت:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)

شرح
Panel Type: a-Si TFT-LCD Panel Size: 8.9 inch
Resolution: 1024×600 Contrast Ratio: 500:1 (Typ.)
Display Colors: 262K (6-bit) Frequency: 60Hz
برجسته:

industrial touch screen display

,

industrial lcd screen

HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)



HSD089IFW1-B00 Basic Information

Panel Model HSD089IFW1-B00
Panel Brand HannStar
Descrition a-Si TFT-LCD ,8.9 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



HSD089IFW1-B00 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 17:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1890 mm (H×V)
Pixel Pitch 0.1905×0.1890 mm (H×V)
Weight 200/215g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 195.072×113.4 mm (H×V)
Bezel Area 198.27×116.6 mm (H×V)
Outline Dimension 213.36×129.55 mm (H×V)
Outline Depth 5.15/5.45 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



HSD089IFW1-B00 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 5/20 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.43 (Max.)(9 points)
Sunlight Readable N



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

3. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

4. long-term partner:

* Products are sold to more than 20 countries.

5. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BF039WVQ-100 BOE 3.9" 480×800
ST3151A04-8 CSOT 31.5" 1366×768
TM060XYSP01 Tianma 6.0" 540×960
LH430WV6-SH01 LG Display 4.3" 480×800
LH500WX2-SH05 LG Display 5.0" 720×1280
HV480FH2-600 BOE 48" 1920×1080
LC320HU1A PANDA 31.5" 2560×1440
P097ZCA-1Z2 Innolux 9.7" 1024×768

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
