جزئیات محصول:
|
| Panel Size: | 10.4 inch | Resolution: | 1024×768 |
|---|---|---|---|
| Contrast Ratio: | 1200:1 (Typ.) | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | Outline: | 225.5×176.3×10.67 mm |
| برجسته: | industrial lcd screen,industrial lcd panel |
||

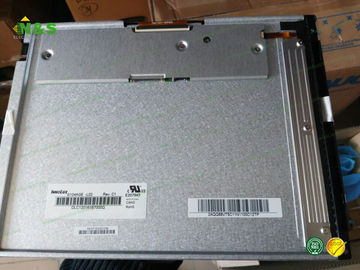

CMO G104X1-L02 10.4 inch 210.432×157.824 mm Active Area 225.5×176.3×10.67 mm Outline Contrast Ratio 1200:1 (Typ.)
G104X1-L02 Basic Information
| Panel Model | G104X1-L02 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
G104X1-L02 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Weight | 480g (Typ.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 225.5×176.3 mm (H×V) |
| Outline Depth | 8.7/10.67 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G104X1-L02 Optical Features
| Display Mode | Super MVA, Normally Black, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Color Gamut | 57% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.329; Wy:0.346 |
| White Variation | 1.40 (Max.)(5 points) |
| Sunlight Readable | N |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSF650FJ02 | Samsung | 65" | 3840×2160 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
| ST5461B05-1 | CSOT | 55" | 1920×1080 |
| LH500WF3-SH01 | LG Display | 5.0" | 1080×1920 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| LC550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| HV320FHB-N10 | BOE | 31.5" | 1920×1080 |
| DPP050A224A | JDI | 5.0" | 1080×1920 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
